Qingdao Henger Marine Supply Co., Ltd
منزل المنتجاتالبحرية وسادة هوائية مطاطية

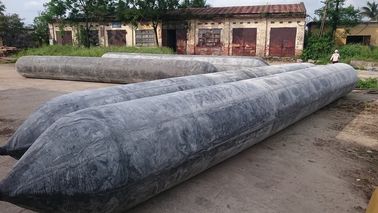

Inflatable Rubber Airbag Customized Design ISO9001 underwater air lift bags

الصين Qingdao Henger Marine Supply Co., Ltd الشهادات
الصين Qingdao Henger Marine Supply Co., Ltd الشهادات
عملنا مع Henger لمدة 4 سنوات ، المصدات ذات جودة عالية دون أي مشاكل. الباعة هم كل نوع جدا والمهنية.

—— باولو أندرسون

Henger هو أفضل مورد قابلته في الصين من أجل مصدات الهواء العائمة ومصدات الرغاوي. مصداتهم هي في الواقع منتجات الأشياء الحقيقية دون قطع التصنيع والمواد.

—— تيم

يتمتع Henger بقدرة قوية على البحث والتطوير ، حيث قام بتخصيص العديد من المنتجات عالية التقنية لمؤسستنا. ترغب في الحصول على تعاون أفضل مع Henger في منطقة marinetime أوسع.

—— الدكتور كامران خان

ابن دردش الآن

Inflatable Rubber Airbag Customized Design ISO9001 underwater air lift bags

Inflatable Rubber Airbag Customized Design ISO9001 underwater air lift bags
Inflatable Rubber Airbag Customized Design ISO9001 underwater air lift bags
video play

صورة كبيرة :  Inflatable Rubber Airbag Customized Design ISO9001 underwater air lift bags

تفاصيل المنتج:
مكان المنشأ: تشينغداو
اسم العلامة التجارية: Henger
إصدار الشهادات: CCS, ABS, LRS, BV, GL, DNV, NK
رقم الموديل: HE-HPF
شروط الدفع والشحن:
الحد الأدنى لكمية: حاسب شخصي 1
الأسعار: USD 50-3000 PER PIECE
تفاصيل التغليف: عاري / لوح
وقت التسليم: 7-15 يوم عمل
شروط الدفع: D / A ، L / C ، D / P ، T / T ، ويسترن يونيون ، موني جرام
القدرة على العرض: 10 قطع في الأسبوع
مفصلة وصف المنتج
اسم المنتج: وسادة هوائية من المطاط البحري / وسادة هوائية لإطلاق السفينة / وسادة هوائية للإنقاذ / وسادة هوائية لل العلامة التجارية: هنجر
مواد: المطاط الطبيعي بحجم: د0.5-4.5
فترة الحياة: 8 ~ 10 سنوات طبقة: 5/6/7/8/9/10 طبقات
ضغط العمل: 0.05 ميجا باسكال - 0.17 ميجا باسكال

High Damping Capacity Inflatable Rubber Airbag Customized Design ISO9001 Approved



Inflatable Marine Rubber Airbag Introduction



6000 years ago, our ancestor begin to use log-rolling method to lift and move weights, which is still widely used in daily production and actual life nowadays. Marine rubber airbag is designed with soft rubber to lift and carry weights, based on log-rolling method.



Marine rubber airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship launching & upgrading, caisson lifting & moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber airbag is not limited to space and heavy machinery, which could efficiently shorten the construction period and save lots of funds.



Inflatable Marine Rubber Airbag Application

High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 0

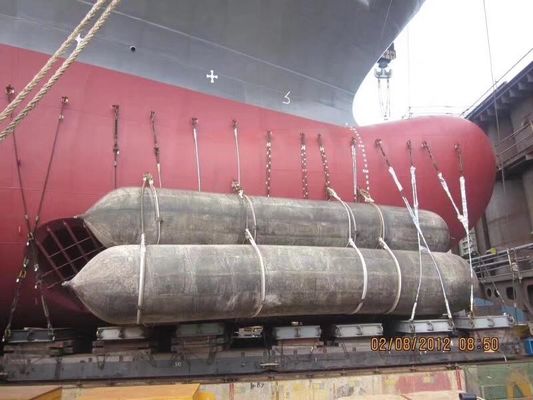

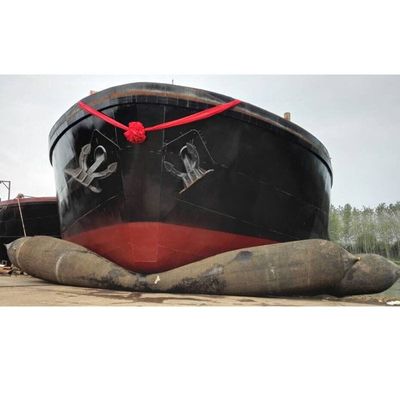

1. Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.



High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 1



2. Weight lifting & moving
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects.



High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 2



3. Buoyancy Aid & Salvage
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.



High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 3

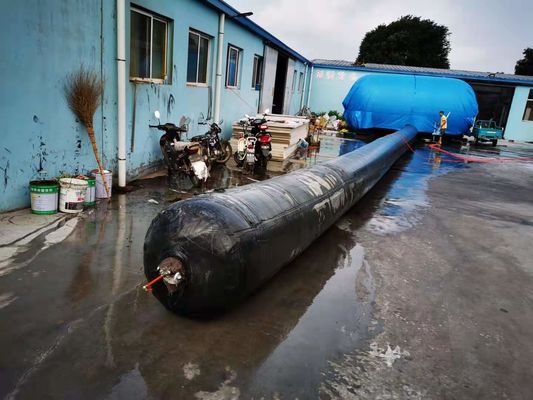

Inflatable Marine Rubber Airbag Technical Requirement

High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 4

According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

1. Dimensional Deviation

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

2. Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.

3. Safety Factor: >4.5

4. Air Tightness: depressurization < 5% after 1hour inflation

5. Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.

6. end part anti-explosion design

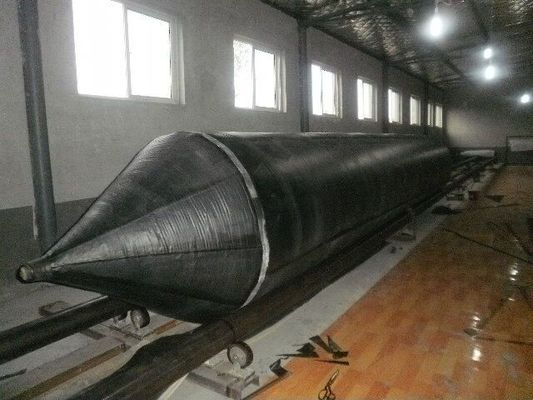

Inflatable Marine Rubber Airbag Product Features

High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 5



1. High bearing capacity

Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.

Henger adopts new rubber formula and high-strength enhanced synthetic-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard



2. High kneading-resistance capability

When the airbag is rolling under the ship bottom, it will suffer a “kneading force” from ship bottom and ground because of not uniform rolling speed, which could case problems like delamination, layer buckling, etc.

Henger improved the manufacturing technique and raw material formula to strengthen kneading-resistance capability of the airbag and avoid worse accident .



3. New anti-explosion design of end part

The possibility of air leakage in the joint area of metal part and rubber part is also increasing as working pressure of airbag is added. After using for times under high working pressure, the airbag would burst and metal part would hurt workers.

Henger invented new anti-explosion design of the airbag end part, increasing the bonding strength and air tightness between rubber body part and end metal part. Henger airbag is working very well under higher working pressure without potential safety hazard.



4. Optimizing structure configuration

Henger built a strength and Intensity Model to test compression performance, stress intensity and direction. After testing for many times, we got the stress changeing regularity and optimized structure configuration design. The new optimized airbag successfully passed blasting experiment and achieved good performance in practical use.



5. Good Abrasion-resistance performance and high ageing resistance

The airbag is working under bad and poor condition, suffering from long time sunlight exposure, seawater corrosion, impurities pollution, etc. The surface of airbag must be equipped with high capability of abrasion resistance, ageing resistance, corrosion resistance.

Henger airbag is made of natural rubber with special ingredients and unique manufacturing method. The finished airbag could working very well under above mentioned bad and poor working condition.



6. Higher flexibility and shock absorption capability

Henger airbag is manufactured with unique integral twining technique. The airbag wall thickness is uniform with secondary seam in overlap joint. When rolling in slope and uneven ship path, the flexible airbag is helpful to reduce structure stress and ship launching risk.





Inflatable Marine Rubber Airbag Technical Parameter

Model D(m) P(Mpa) Working Height(m) Unit Bearing Capacity(ton/m)
0.4D 0.5D 0.6D 0.4D 0.5D 0.6D
S1



S10

0.8 0.20 0.32 0.40 0.48 15.1 12.6 10.0
1 0.16 0.40 0.50 0.60 15.1 12.6 10.0
1.2 0.14 0.48 0.60 0.72 15.8 13.2 10.6
1.5 0.11 0.60 0.75 0.90 15.5 13.0 10.4



S11

0.8 0.19 0.32 0.40 0.48 14.3 11.9 9.5
1 0.15 0.40 0.50 0.60 14.1 11.8 9.4
1.2 0.13 0.48 0.60 0.72 14.7 12.2 9.8
1.5 0.10 0.60 0.75 0.90 14.1 11.8 9.4





S12

0.8 0.24 0.32 0.40 0.48 18.1 15.1 12.1
1 0.19 0.40 0.50 0.60 17.9 14.9 11.9
1.2 0.16 0.48 0.60 0.72 18.1 15.1 12.1
1.5 0.13 0.60 0.75 0.90 18.4 15.3 12.2
1.8 0.10 0.72 0.90 1.08 17.0 14.1 11.3
S2





S20

1 0.24 0.40 0.50 0.60 22.6 18.8 15.1
1.2 0.20 0.48 0.60 0.72 22.6 18.8 15.1
1.5 0.16 0.60 0.75 0.90 22.6 18.8 15.1
1.8 0.13 0.72 0.90 1.08 22.0 18.4 14.7
2 0.12 0.80 1.00 1.20 22.6 18.8 15.1





S21

1 0.27 0.40 0.50 0.60 25.4 21.2 17.0
1.2 0.23 0.48 0.60 0.72 26.0 21.7 17.3
1.5 0.18 0.60 0.75 0.90 25.4 21.2 17.0
1.8 0.15 0.72 0.90 1.08 25.4 21.2 17.0
2 0.14 0.80 1.00 1.20 26.4 22.0 17.6





S22

1 0.31 0.40 0.50 0.60 29.2 24.3 19.5
1.2 0.26 0.48 0.60 0.72 29.4 24..5 19.6
1.5 0.20 0.60 0.75 0.90 28.3 23.6 18.8
1.8 0.17 0.72 0.90 1.08 28.8 24.0 19.2
2 0.15 0.80 1.00 1.20 28.3 23.6 18.8
2.5 0.12 1.00 1.25 1.50 28.3 23.6 18.8
S3





S30

1 0.35 0.40 0.50 0.60 33.0 27.5 22.0
1.2 0.29 0.48 0.60 0.72 32.8 27.3 21.9
1.5 0.23 0.60 0.75 0.90 32.5 27.1 21.7
1.8 0.19 0.72 0.90 1.08 32.2 26.8 21.5
2 0.17 0.80 1.00 1.20 32.0 26.7 21.4
2.5 0.14 1.00 1.25 1.50 33.0 27.5 22.0

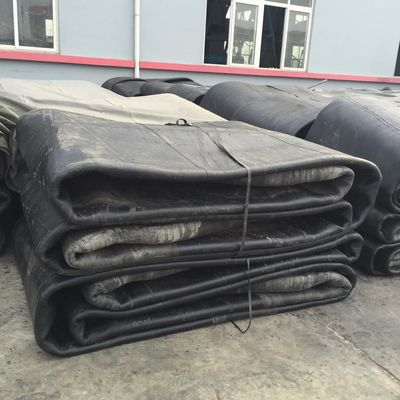

Packing & Delivery

High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 6

* all packing method and shipping method of inflatable marine rubber airbag are done as per to csutomer's requirement.



Company Introduction



Qingdao Henger Marine Supply Co., Ltd

High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 7



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

High Damping Capacity Marine Rubber Airbag Customized Design ISO9001 Approved 8



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
