White Pneumatic Rubber Fender with CCS BV LR DNV Certification

الـ MOQ:	1
السعر:	275
العبوة القياسية:	0.51M-4.812M
فترة التسليم:	5-8 سنوات
طريقة الدفع:	L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram
القدرة على التوريد:	5-8 سنوات

تفاصيل معلومات

وصف المنتج

معلومات مفصلة

مكان المنشأ

شاندونغ ، الصين

اسم العلامة التجارية

Henger

إصدار الشهادات

BV, DNV, RL, CCS, ABS, GL, LG

رقم الموديل

إبراز:

White pneumatic rubber fender,Pneumatic rubber fender with certification,CCS BV LR DNV certified fender

Pneumatic rubber fender with certification

CCS BV LR DNV certified fender

وصف المنتج

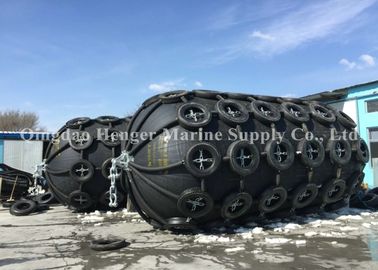

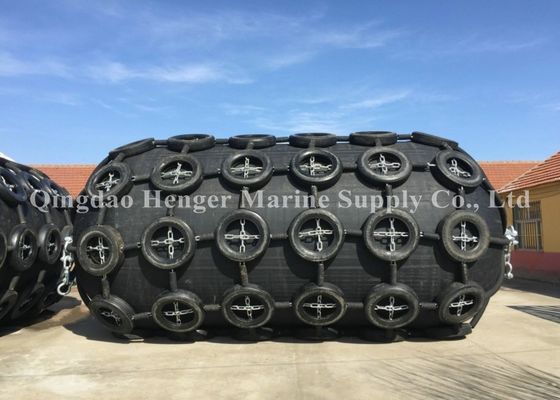

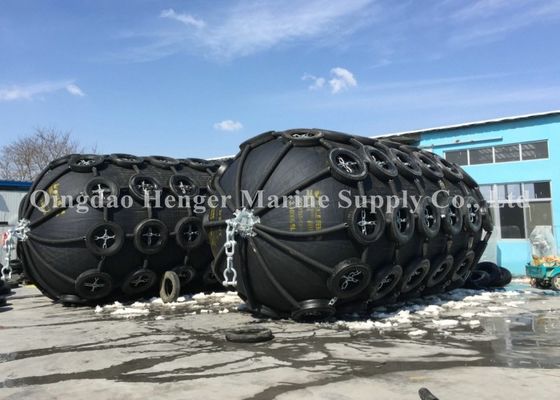

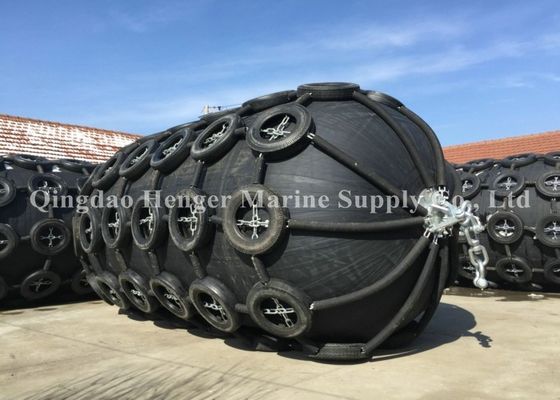

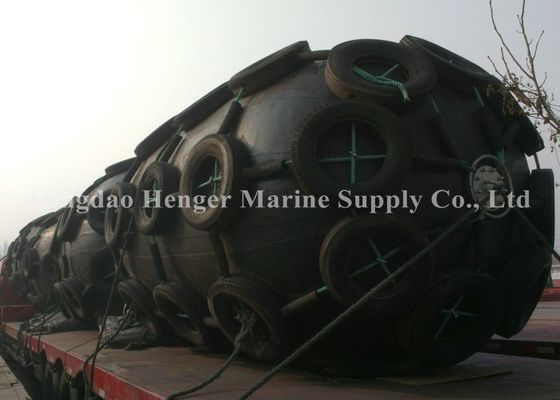

Henger White Pneumatic Rubber Fender with CCS BV LR DNV Certification

Premium Marine Safety Solution for STS and STD Operations

High quality material for reliable marine safety and long service life

Manufacturer Information

Qingdao Henger Shipping Supplies Co., Ltd

Located in Qingdao, China, we are a high-tech enterprise specializing in marine products manufacturing, research and innovation, and technical services. Our product line includes marine rubber fenders, marine airbags, navigation marks, and marine buoys.

All products are ISO 9001-2008 certified and have IACS quality authentication from CCS, BV, GL, ABS, LG, and other classification societies.

Product Overview

The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. Our floating inflatable rubber fenders have evolved alongside ship technology advancements to accommodate progressively larger vessels including VLCCs, ULCCs, large gas carriers, bulk carriers, and floating structures.

Key Features

Constructed with multiple layers of strong tire-cord for superior pressure and cutting resistance
Design safety factor based on accepted theory and extensive experimentation
Large-size fenders include safety valves for pressure regulation
Utilizes compressive elasticity of air for completely uniform surface pressure
Surface pressure equals internal air pressure for consistent performance
Particularly suitable for LNG-ship terminals due to low, uniform surface pressure
Enhanced manufacturing techniques and material formulas improve kneading-resistance
Special mucilage coating between layers ensures air tightness and durability

Technical Specifications

Fender Size	Compression Amount (60%)	Noumenon Weight (Kg)	Weight with Protective Jacket (Kg)
D (mm) \| L (mm)	Reaction (KN)	Energy Absorption (KNm)
500\| 1000	64	6	23\| 35
600\| 1000	74	8	28\| 40
700\| 1000	137	17	58\| 52
1000\| 1500	182	32	82\| 100
1000\| 2000	257	45	148\| 152
1200\| 2000	297	63	167\| 200
1350\| 2500	427	102	220\| 298
1500\| 2500	499	134	270\| 300
1500\| 3000	579	153	318\| 450
1700\| 3000	639	191	380\| 482
2000\| 3500	875	308	580\| 890
2000\| 4000	1000	352	680\| 1000
2500\| 4000	1381	663	1064\| 1180
2500\| 5500	2019	1131	1268\| 1380
3000\| 5000	2422	1357	1980\| 2388
3000\| 6000	2906	1293	2400\| 2690
3300\| 4500	1884	1175	2380\| 2617

Frequently Asked Questions

How do I choose the right size fender for my ship?

Our team has over 20 years of experience. Please provide your ship information and we will recommend the appropriate fender size.

What is your minimum order quantity?

Our MOQ is 1 piece.

What is your warranty policy?

We offer a 2-year warranty. We will repair or replace any products that prove to have quality issues.
